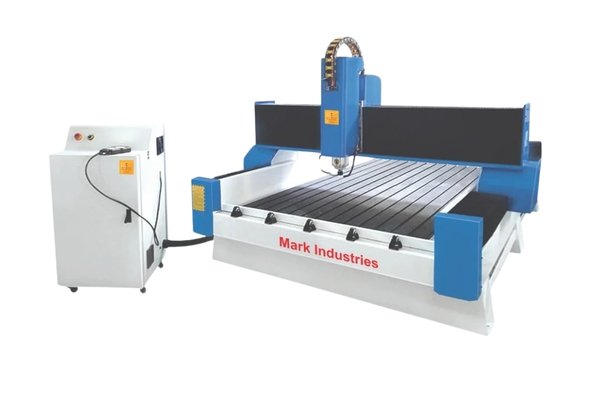

CNC Stone Router Machine
Stone Router Machine
A computer numerical control (CNC) router is a computer-controlled cutting machine which typically mounts a hand-held router as a spindle which is used for cutting various Stones such as Granite, Marbles, Tiles and Sandstone.
| Description | Stone Mark |
|---|---|
|
Brand |
WoodMark |
|
X,Y Axis Travel |
1300 x 2500 mm(4 x 8 ft.), 1500 x 3000 mm(5 x 10 ft.), 2000 x 3000 mm, 2000 x 4000 mm |
|
Z Axis Travel |
300 mm, 400 mm, 500 mm, 600 mm
|
|
Spindle Power
|
505 kv marble engraving spindle with 24000 RPM Er25 |
|
Drive System |
X,Y and Z axis germen helical rack and pinion for X and Y axis and Z axis with TBI ball screw (Optional) |
|
Transmission |
X,Y and Z axis HIWIN /THK rail linear guide and bearings. |
|
Motor |
X, Y, and Z stepper motor / AC servo motor |
|
Machine Structure |
Thicken weld steel tube machine body. Rigid cast steel gantry and side support and table, water tank |
|
Working Voltage
|
220V/50HZ/60HZ, 3PH or 380V/50HZ/60HZ, 3PH |
|
Command Language |
G Code & M Code
|
|
Operating System
|
DSP handheld controller/ NC studio/ Mach 3/ SYNTEC |
|
Controller/SIEMENS Collet |
Er25, Ф4, Ф6,1/8, 1⁄2 |
|
|
Automatic lubrication system
|
|
Max. Rapid Travel Speed |
40000 mm/min Max. |
|
Working Speed |
25000/min |
|
Repeatability |
+/-0.04 mm/300 mm |
|
|
+/-0.03 mm/300 mm |
|
Machining Function |
2D Machining, 2.5D Machining, 3D Machining |
|
Compatible Software |
Type 3, Ucancam, Artcam, etc. |
